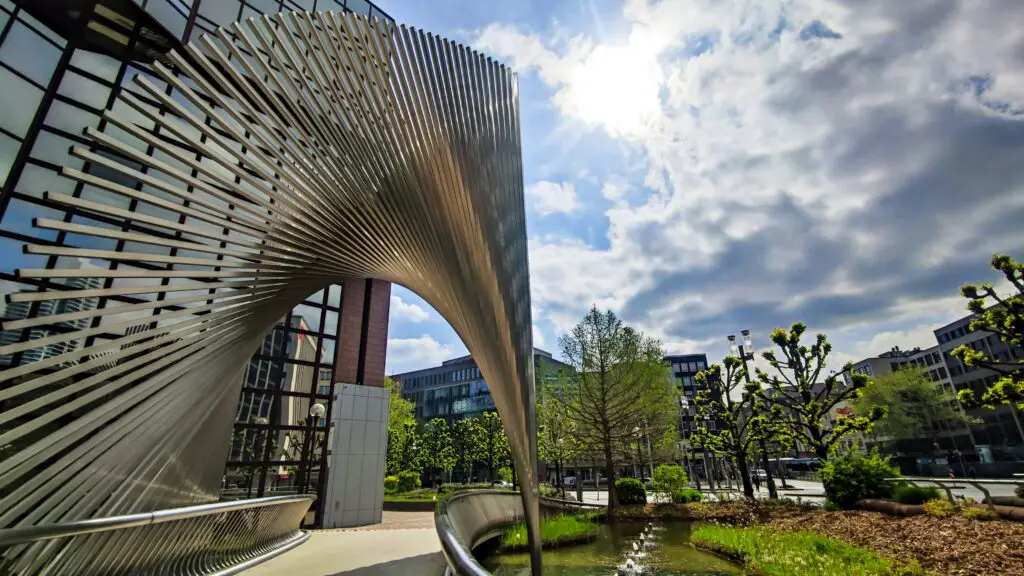

Large-scale steel sculptures are impressive feats of engineering and artistic vision, but time, weather, and repeated loading cycles take their toll on even the sturdiest fabrications. Fatigue—a progressive structural damage mechanism caused by cyclic stresses—can silently erode weld toes, plate transitions, and connection details until cracks form and propagate. When a sculpture shows fatigue-related symptoms, you need a careful, technically rigorous retrofit strategy that prolongs service life without vandalizing the artist’s original intent. That balance means defining clear performance targets (how much longer should the work survive under expected loads?), mapping stakeholders and permits, conducting nondestructive evaluation to find hidden flaws, and running finite-element models that identify stress concentrators so you can design discreet reinforcements. The best retrofits are minimally invasive, reversible where possible, sympathetic to surface aesthetics, and engineered to eliminate or reduce local stress ranges that drive fatigue. This article walks through the full process: scoping, condition assessment, metallurgical analysis, loading definition, FEA workflow, fatigue-specific analysis, repair options and detail design, corrosion management, prototyping and testing, logistics for installation, and life-cycle monitoring. Each step considers both structural mechanics and conservation ethics so the final intervention safeguards public safety and the artwork’s cultural value.
Project scope and performance targets: defining fatigue life goals, acceptable intervention levels, and conservation constraints
Start every retrofit by pinning down what “success” looks like: do stakeholders expect a life extension of five, fifty, or a century? Define quantitative fatigue-life goals where possible—target remaining life in cycles or a target probability of survival over a given period under expected loading spectra—then translate those into engineering acceptance criteria like allowable crack growth rates, acceptable stresses, or required safety factors. At the same time, record conservation constraints: does the artist or estate demand minimal visual alteration? Are there irreducible aesthetic requirements about patina, texture, or surface continuity? Document reversible/irreversible thresholds—some owners accept welded reinforcements hidden in cavities, others insist on removable bolted splices. Be explicit about acceptable intervention levels: are internal stiffeners allowed, or must all changes be external? Establishing these boundaries early helps engineers and conservators trade off structural performance against visual impact intelligently. Also set a decision matrix for worst-case versus staged repairs and identify funding and permitting constraints that may narrow feasible technical options. A well-scoped project reduces back-and-forth and delivers a retrofit that meets engineering, ethical, and budgetary expectations.
Stakeholder mapping and decision governance: artist/estate, engineers, conservators, fabricators, owners, and permitting authorities
Large sculpture retrofits involve many voices and interests, and getting alignment early saves headaches. Map stakeholders—artist or estate, commissioning body, municipal authorities, conservators, structural engineers, fabricators, insurers, and community representatives—and define governance: who signs off on analytical assumptions, design approaches, and final aesthetics? Create a decision matrix that clarifies responsibilities for safety-critical choices (engineers) vs. aesthetic trade-offs (curators/estates). Include permitting bodies early because local heritage, public-right-of-way, or workplace-safety rules often constrain methods (e.g., limitations on welding in-situ, scaffold permitting, noise restrictions). Incorporate conservator input to set material compatibility and intervention reversibility rules, and loop fabricators in during schematic design to ensure that proposed details are buildable and serviceable. Finally, agree on a communications plan for public-facing updates if the work sits in a civic space; transparency builds trust and can smooth approvals. Structured stakeholder governance lets technical teams focus on solutions that are both structurally sound and culturally acceptable.
Comprehensive condition assessment and nondestructive evaluation: visual inspection, ultrasonic testing, radiography, magnetic particle, and surface crack mapping
Before sketching reinforcement details you must know the sculpture’s precise condition. Conduct a systematic survey: high-resolution photography, raking light for surface cracks, and mapping visible deformation. Complement visual work with targeted nondestructive testing (NDT): ultrasonic pulse-echo or phased-array reveals subsurface cracks, voids, and weld discontinuities; radiography provides imagery of internal weld quality and hidden defects; magnetic particle inspection highlights surface-breaking cracks in ferromagnetic steels; dye-penetrant methods pick up fine surface fissures. Use laser scanning or photogrammetry to capture global geometry and identify deformations that suggest plastic strain or progressive loss of section. Record all findings in a unified condition map that links defect types to coordinates and environmental exposure. Where NDT indicates probable fatigue cracks, consider portable eddy-current or acoustic emission monitoring to capture active growth. A data-rich condition assessment not only shapes the FEA boundary conditions but also helps prioritize interventions and estimate cost and schedule with realism.
Material characterization and metallurgical evaluation: steel grade identification, microstructure, residual stresses, and weld history analysis
Materials matter deeply in fatigue performance. Identify steel grade and composition—common vintage steels, weathering steels, and modern alloys behave differently under cyclic loading and in corrosive environments. Metallurgical analysis (micrographs, hardness testing, chemical assays) reveals grain structure, phase distributions, and potentially deleterious features like sulfide inclusions that nucleate cracks. Document the fabrication history: are welds as-built, rewelded, or repaired with dissimilar filler metals? Residual stresses from fabrication or thermal cycles concentrate local service stresses and shorten fatigue life; consider X-ray diffraction or hole-drilling strain relief tests to estimate residual stress fields. If the steel shows embrittlement from service or prior heat treatments, that alters acceptable load ranges. All this knowledge informs material models in the FEA and helps choose compatible retrofit metals and fasteners. Ignoring metallurgy risks designing reinforcements that fail prematurely or cause local overdrawing of stress into adjacent, weaker substrate zones.
Load case definition and environmental drivers: static loads, cyclic wind and seismic loads, thermal cycles, human interaction, and accidental impacts
Define the loads that drive fatigue across the structure’s life. Static loads set baseline stresses, but fatigue arises from cyclic loading: wind gusts, vortex shedding, human-induced vibrations (touching, climbing, concerts), and service events like crane lifts or vehicle impacts. Include environmental drivers—thermal expansion and contraction produce daily and seasonal cycles, freeze-thaw cycles when moisture ingress occurs, and corrosive atmospheres that accelerate crack growth. For coastal or industrial sites, account for chloride or sulfate deposition driving corrosion-fatigue interaction. Define representative load histories: stochastic wind spectra, pedestrian cadence loading, or episodic severe events. For sculptures susceptible to aerodynamic excitation, perform CFD or wind-tunnel testing to identify vortex shedding frequencies and likely resonances. Accidental impact scenarios deserve separate, low-probability high-consequence analysis. Accurate load models let FEA and fatigue analyses estimate realistic stress ranges and cumulative damage predictions rather than conservative but imprecise guesses.
Finite-element modeling workflow: mesh strategy, boundary conditions, contact definitions, nonlinearities, and validation against field measurements
FEA is the central tool for identifying stress concentrators and testing retrofit concepts virtually. Build a model faithful to geometry and material behavior: use higher-order or refined elements in critical regions (weld toes, holes, fillets), and coarser meshes elsewhere to save compute time. Define realistic boundary conditions—how the sculpture interfaces with foundations or plinths, whether connections allow rotation or slip, and how temporary supports or ground interactions affect load paths. Model contact interfaces and nonlinearities, including large displacements if the sculpture is slender. Incorporate material plasticity where local yielding has occurred and include initial residual stresses if measured. Validate the model by correlating static deflections and strain gauge readings from field tests to model predictions; adjust stiffness and contact assumptions accordingly. Sensitivity analysis—varying mesh density, boundary constraints, and material properties—identifies which assumptions most influence results and where additional measurements would reduce uncertainty. A validated FEA becomes a robust laboratory for testing reinforcements and assessing their effectiveness before any physical work begins.
Fatigue analysis and stress-concentration identification: notch factors, local stress ranges, hot-spot extraction, S‑N curves, and cumulative damage models
Turning FEA outputs into fatigue insight requires careful local analysis. Extract hot-spot stress ranges at weld toes, bolt holes, and plate transitions—the regions where fatigue cracks typically initiate—and compute appropriate stress concentration or notch factors that account for geometric amplification. Use hot‑spot extrapolation techniques for welded joints to avoid mesh-size dependence. Choose fatigue S‑N (stress-life) curves relevant to materials and detail categories, adjusting for surface finish, mean stress effects, and environmental factors like corrosion which can degrade endurance. For long-term predictions, apply cumulative damage models (Miner’s rule or more advanced cycle-by-cycle fracture mechanics) that integrate the expected load spectrum to estimate remaining life. Where cracks already exist, fracture mechanics (stress intensity factor K, Paris law) predicts growth rates and the critical size for intervention. Combine probabilistic approaches for uncertainties in load spectra and material scatter so stakeholders get realistic confidence intervals, not single deterministic numbers. The goal is to identify the weakest links and quantify how proposed retrofits reduce local stress ranges and extend life.
Repair strategy trade-offs: welded repairs, bolted/fastened reinforcement, adhesive bonding, and hybrid approaches—pros, cons, and conservation implications
Selecting a repair approach balances structural effectiveness, durability, and conservation constraints. Welded repairs and reinforcement plates provide high stiffness and continuity but introduce thermal cycles, potential distortion, and irreversible metallurgical changes; they may be unacceptable where reversibility is mandated. Bolted splice plates or external stiffeners offer high strength with potential reversibility, though they may alter visual lines and require concealed detailing to preserve aesthetics. Adhesive bonding—modern structural epoxies—can be a low-impact option for thin stiffeners and does not require hot work, but their long-term performance in outdoor cyclic, UV-exposed environments is less proven and may complicate future retreatment. Hybrid solutions often give the best of both worlds: internal welded ribs hidden in cavities paired with removable external plates for future service access. Each option has implications for inspection and maintenance: bolted joints require retorquing, welded repairs need periodic crack monitoring, and adhesives require protection from UV and moisture. Map these trade-offs against stakeholder constraints to choose a strategy that meets fatigue goals while respecting conservation priorities.
Detailing discreet reinforcement: internal ribs, hollow box sections, hidden splice plates, and low-visual-impact stiffeners that preserve sightlines and surface continuity
Design detail matters—good reinforcement is invisible engineering. Internal ribs inserted into hollows or attached to interior surfaces can significantly increase section modulus without changing external form; access holes for insertion and closure methods must be planned to maintain surface continuity. Hollow box sections or stiffened inserts within existing cavities preserve exterior aesthetics and are especially useful for tubular sculptures. Concealed splice plates routed behind flanges or under plinths allow load transfer enhancements without surface alteration; ensure adequate bearing area and fatigue-rated fasteners to prevent local punching. For flat plates, thin-profile stiffeners welded or bonded to the back face reduce bending stress at the visible surface. Use fillets and smooth transitions to avoid creating new stress raisers; detail fatigue-friendly transitions with generous radii and continuous weld profiles where welding is used. Document every hidden detail thoroughly so future conservators understand what was done and can access internal reinforcements if necessary. The best reinforces are those that preserve the integrity of the artwork while eliminating the mechanical drivers of fatigue.
Connection design and load transfer: bolted splice sizing, fatigue-rated fasteners, preload strategies, slip-critical joints, and welded detail optimization
Connections are the oft-forgotten Achilles’ heel. For bolted splices choose fatigue-rated fasteners and specify preload to avoid joint slip under cyclic shear; slip-critical joints with proper surface preparation and controlled clamp force prevent micro-motion that amplifies fatigue. Size bolts and splice plates to distribute bearing and shear loads without concentrating stress near holes—use oversized bearing areas and multiple fasteners to spread loads. Consider using tapered or countersunk plates to maintain tight clamping without protruding hardware. For welds, prefer continuous welds with smooth profiles and avoid abrupt termination points; use weld sequence planning to manage residual stresses and minimize distortion. Where possible, locate bolted joints in protected locations to minimize corrosion, and design access for inspection and re-tightening. Connection detailing must balance structural effectiveness, maintenance accessibility, and visual discretion—poorly detailed joints will reintroduce fatigue problems even if primary plates are beefed up.
Corrosion management and material compatibility: metallurgy of retrofit materials, galvanic considerations, coatings, cathodic protection, and drainage detailing
Fatigue and corrosion often cooperate destructively, so manage both together. Select retrofit metals compatible with the original alloy to avoid galvanic couples; when dissimilar metals are necessary, isolate contacts with non-conductive gaskets or coatings. Specify corrosion-protective systems: industrial-grade primers, barrier coatings, or sacrificial coatings comparable to the original finish if aesthetics demand it. For coastal or polluted environments consider cathodic protection for critical buried or submerged joints, but evaluate the broader electrical environment and ensure no detrimental stray currents occur. Design drainage paths and weep holes so moisture cannot pool in splice cavities; seal joints against water ingress yet provide inspection ports. Use corrosion allowance in bolt and plate sizing where regular maintenance is expected, and plan for coating maintenance cycles in lifecycle cost estimates. Ultimately, a retrofit that ignores corrosion control will only delay failure; integrated corrosion management is essential for sustainable fatigue resistance.
Prototyping, load testing, and validation: scaled mockups, full-scale static and fatigue testing, strain-gauge campaigns, and post-retrofit verification
Don’t let the first cut be the final word: prototype and validate. Fabricate scaled mockups to test local details—weld profiles, bolted splice behaviors, and adhesive bonds—then perform static and fatigue tests to verify predicted improvements. For critical nodes, full-scale mockups might be warranted to measure real-world performance under controlled loading. Use strain gauges and displacement transducers on the actual sculpture during staged loading or dynamic excitation to validate FEA predictions and calibrate models. After retrofit installation, undertake a verification campaign: measure modal frequencies, perform load tests where safe, and install long-term sensors to track strain and crack growth. Use nondestructive tests periodically to catch any unexpected damage introduced during installation. Validation builds confidence among stakeholders, reduces liability concerns, and provides a feedback loop that improves future retrofit designs.
Fabrication, access, and installation logistics: temporary supports, lifting, site welding constraints, and protection of original surfaces during intervention
Installation is where plans meet reality, and logistics make or break a retrofit. Plan temporary supports and lifting points to stabilize the sculpture during interventions; ensure rigging doesn’t impart damaging loads or marring on sensitive surfaces. For site welding, check local regulations and safety zones—hot work permits, fire watches, and scaffold safety all influence scheduling. If onsite welding is infeasible due to constraints, pre-fabricate assemblies offsite and use bolted connections for field installation. Protect original finishes with sacrificial coverings during works, and use non-invasive access methods when possible. Coordinate site traffic, pedestrian protection, and working hour limits with municipal authorities. Contingency planning is crucial: prepare for unexpected discoveries like hidden defects or deprecated anchors that necessitate design changes on the fly. A carefully choreographed installation minimizes risk to the artwork and the public while delivering structural improvements efficiently.
Monitoring, maintenance, and lifecycle planning: structural health monitoring sensors, inspection schedules, re-tightening/retorque plans, and documentation
The retrofit is the start of a new maintenance lifecycle, not the end. Implement a structural health monitoring (SHM) strategy tailored to risk: strain gauges at hot-spots, acoustic emission sensors to detect crack growth, accelerometers to monitor dynamic responses, and periodic NDT surveys. Define inspection schedules for visual checks, torque verification on critical bolts, and coating condition assessments. Include re-tightening intervals and protocols for bolted joints, and set thresholds for sensor alerts that trigger detailed inspections. Maintain a living document: inspection records, sensor data logs, and photographic baselines, all indexed to the model and design drawings so future teams can understand the global condition. Lifecycle planning should also address funding for periodic maintenance, recoat schedules, and eventual replacement strategies. A robust monitoring and maintenance regimen protects the investment in retrofit work and ensures the sculpture continues to meet both safety and artistic objectives for years to come.
Ethical design principles and artist intent preservation: visual minimalism, reversible or retreatable interventions, documentation protocols, and stakeholder sign-off
Finally, design with ethics in mind. Keep interventions as minimal and as invisible as feasible, prioritize reversible or retreatable details where practical, and avoid altering features that convey the artist’s original expressive intent. Wherever irreversible repairs are necessary for public safety, document them exhaustively with photos, drawings, material specs, and rationale, and secure stakeholder approvals in writing. Provide a conservation file that includes FEA models, test reports, fabrication records, and maintenance instructions to support future care. Consider interpretive elements—plaques or digital content—that explain the necessity of interventions to the public without diminishing the work’s aesthetic value. Ethical retrofit design treats the sculpture as both an engineering structure and a cultural artifact: your job is to keep it standing and safe while preserving the story it tells.
